Product Overview
We specialize in the production of ME-100-104 precised filter elements, with an annual sales volume of more than 120,000. ME-100-104 precised filter element can filter micron-level pollutants, which is featured by high filtering accuracy and low cost.

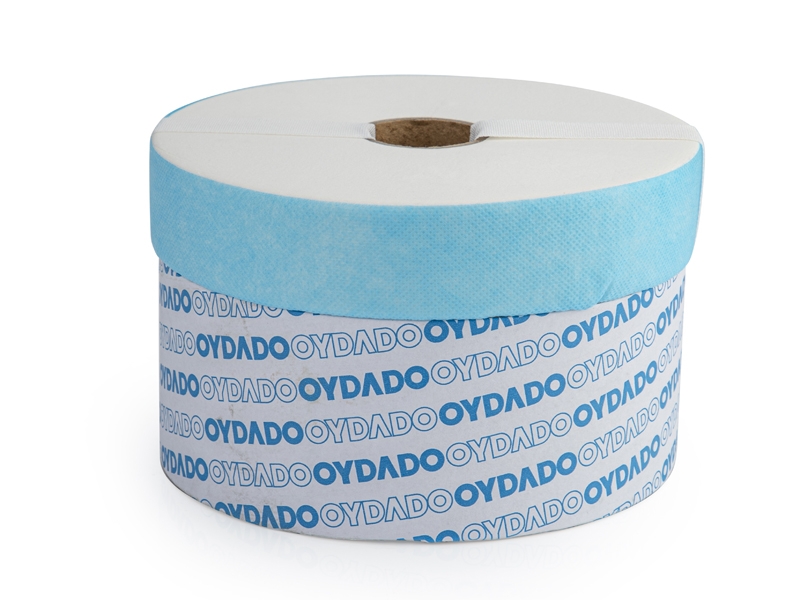

ME-100-104 precised filter element
1、ME-100-104 Precised Filter Element Product Introduction
ME-100-104 precised filter element is processed by filter material made of wood pulp, cellulose and additives. Segmented rolling manufacturing process is adopted to press the filter material of the planar structure into a cylindrical filter element with different density gradients. The filter element has the following functions, such as absorbing pollutants by grades, adsorbing pollutants, and absorbing and locking moisture.
2、Technical parameters of ME-100-104 precised filter element
Model number:ME-100-104
Outer diameter (mm): Φ180
Inner diameter (mm): Φ40
Height (mm): 104
Maximum impurity absorption (approximately): 450 g
Maximum water absorption (approximately): 960 mL
Temperature range in operation: 0～80℃
Viscosity range of the used oil: 9～180cSt
Supporting bypass oil filter model: BU-100-104
3、Features of ME-100-104 precised filter element
a. High filtering accuracy, the oil cleanliness level after filtration is as high as NAS3
b. Large dirt holding capacity, with the three functions of adsorption, subsumption and water absorption at the same time
c. It can filter out moisture, oil oxides, sludge and micron solid particles
4、Picture of ME-100-104 precised filter element after use
ME-100-104 precised filter element is suitable for precised filtration of hydraulic oil and other industrial oils with a viscosity ranging from 9 to 180cSt. It has excellent filtering effects for oils of different pollution levels.
