Product Overview
We specialize in the production of ME-200T precised filter elements, with an annual sales volume of more than 50,000. ME-200T precised filter element can filter micron-level pollutants, which is featured by high filtering accuracy and large filtering area。

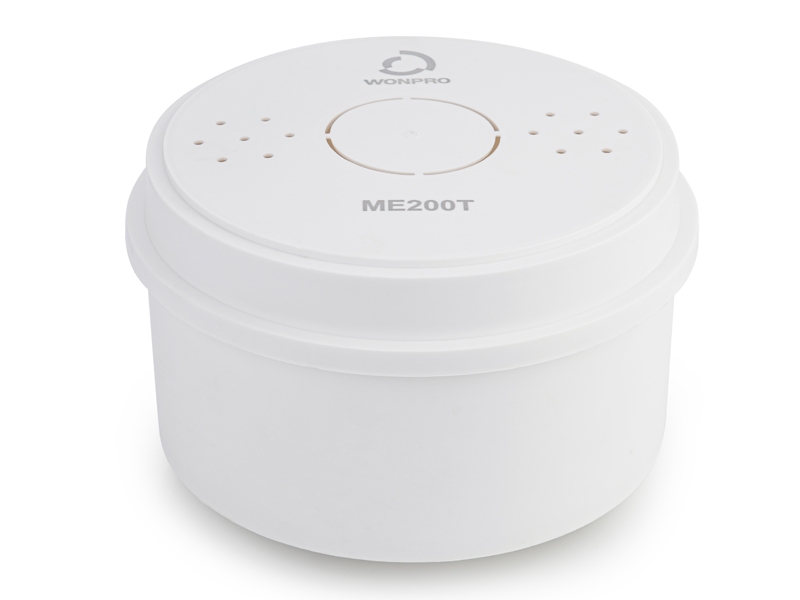

ME-200T precised filter element
1、Product introduction of ME-200T precised filter element
ME-200T precised filter element is processed by filter material made of wood pulp, cellulose and additives. Segmented rolling manufacturing process is adopted to press the filter material of the planar structure into a cylindrical filter element with different density gradients. The filter element has the following functions, such as absorbing pollutants by grades, adsorbing pollutants, and absorbing and locking moisture. The filter element shell is a plastic shell with certain corrosion resistance.
2、Technical parameters of ME-200T precised filter element
Model number: ME-200T
Outer diameter (mm): Φ220
Height (mm):145
Maximum impurity absorption (approximately): 800 g
Maximum water absorption (approximately): 1500 mL
Temperature range in operation: 0～80℃
Viscosity range of the used oil: 9～180cSt
3、Features of ME-200T precised filter element
a. High filtering accuracy, the oil cleanliness level after filtration is as high as NAS3
b. Large dirt holding capacity, with the three functions of adsorption, subsumption and water absorption at the same time
c. It can filter out moisture, oil oxides, sludge and micron solid particles
d. It has certain corrosion resistance and can filter low corrosive oil products
