We specialize in the production of WG-200 water glycol oil filter elements, with an annual sales volume of more than 15,000. WG-200 water glycol oil filter element, featured by high filtering accuracy and large dirt holding capacity, is mainly used for the precised filtration of water glycol oil.

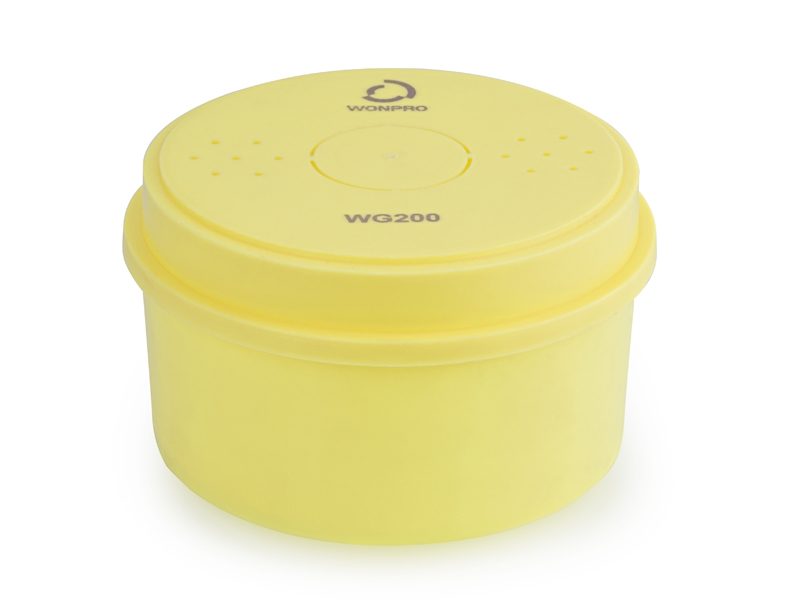

WG-200 water glycol oil filter element
1、Product introduction of WG-200 water glycol oil filter element
The raw material of WG-200 water glycol oil filter element is made of polymer material, which only filters out particles and impurities but does not filter out water. Segmented rolling manufacturing process is adopted to press the filter material of the planar structure into a cylindrical filter element of different density gradients. The filter element has the function of absorbing pollutants by grades and a powerful function of adsorbing pollutants. The filter element shell is a plastic shell with certain corrosion resistance.
2、Technical parameters of WG-200 water glycol oil filter element
Model number: WG-200
Outer diameter (mm): Φ220
Height (mm): 145
Maximum impurity absorption (approximately): 800 g
Operating temperature range: 0～80℃
3、Product features of WG-200 water glycol oil filter element
a. High filtering accuracy, the oil cleanliness grade after filtration is as high as NAS6
b. Two functions: adsorption and subsumption
c. It can filter out oil oxides, sludge and micron solid particles
d. There is a certain degree of corrosion resistance, good rigidity and not easy to deform
e. Feature by large filtering area and large dirt holding capacity
