Product Overview
We specialize in the production of CS310 Oil filter. CS310 Oil filter is featured by high filtering accuracy, small volume and convenient installation. It is mainly used for precised filtration of engine oil.

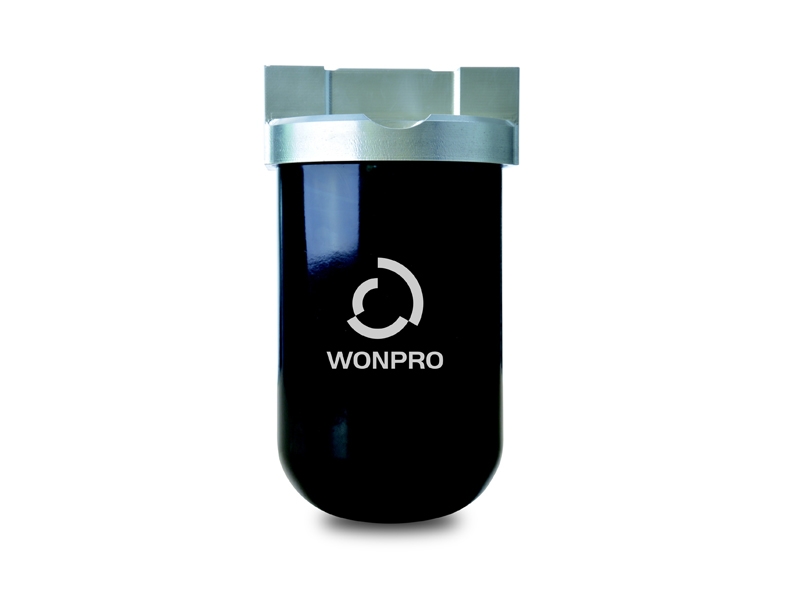

CS310 Oil filter
1、Product introduction of CS310 Oil filter
The CS310 Oil filter is used in combination with engine, and uses the pressure of the oil line, a certain proportion of the oil is diverted from the main oil line and filters by the CS310 Oil filter and returns to the oil tank. The CS310 Oil filter and the engine operate at the same time to remove the oil contaminants generated by the engine in real time, improve the oil cleanliness level, greatly extend the service life of the oil, reduce the failure rate of the hydraulic system, and maintain the hydraulic system in good working condition.
2、Technical parameters of CS310 Oil filter
Product model: CS310
Supporting filter model: SE105-170
Working pressure: ≤10kgf/cm²
Working temperature: <150℃
Inlet and outlet diameter: RC3/8
Applicable fuel tank capacity: ≤6L
Weight (kg): 2.5
Dimensions (mm): Φ115 x 215
3、Product features of CS310 Oil filter
The CS310 Oil filter can filter out moisture, oil oxides, sludge and micron solid particles. The highest cleanliness grade: NAS5 level. It’s is safe and reliable. The built-in safety valve can avoid damage to the oil filter due to excessive pressure. The CS310 Oil filter is used in combination with engine.
The CS310 Oil filter can filter out moisture, oil oxides, sludge and micron solid particles. The highest cleanliness grade: NAS5 level. It’s is safe and reliable. The built-in safety valve can avoid damage to the oil filter due to excessive pressure. The CS310 Oil filter is used in combination with engine.
4、Product features of CS310 element of Oil filter
The filter element of CS310 Oil filter is made of wood pulp, cellulose and additives. It has three functions: water absorption, adsorption and subsumption.
NSA1638 Cleanliness level table
